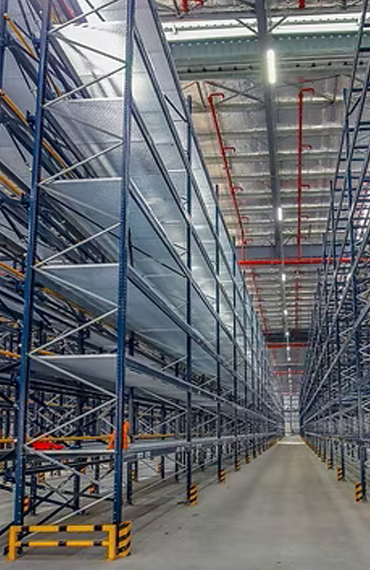

Selective Pallet

Racking

Designed to store a wide range of SKUs with high inventory turnover. It gives 100% selectivity for pallet access. The system is configurable for wide, narrow, VNA and double deep operation.

DoubleDeepImage

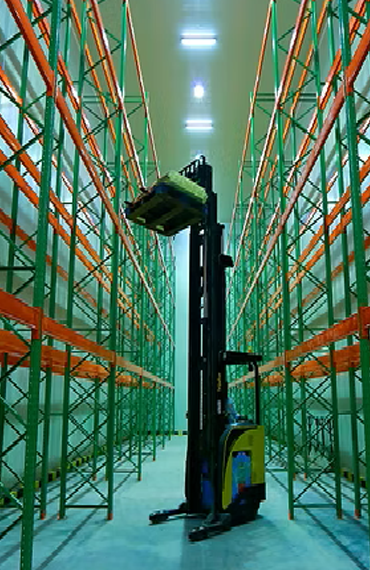

Double Deep Pallet

Racking

A straightforward, cost-effective solution offering 50% selectivity. Ideal for warehouses managing a moderate or low variety of SKUs, this system maximises storage density regardless of quantity.

NarrowAisleImage

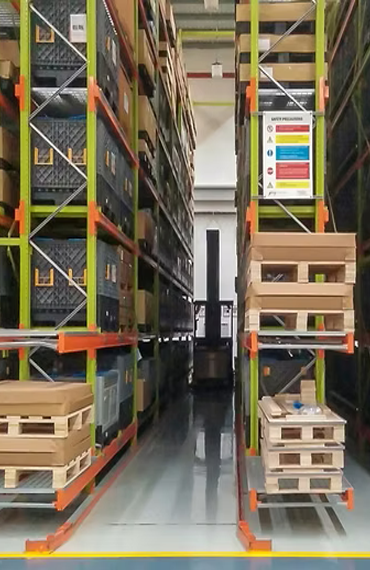

Very Narrow Aisle

Racking

Specially designed for material handling equipment needing aisles under 2 meters. This allows for more pallet positions compared to standard equipment. VNAs can reach 12 meters high and require special guides, either mechanical rails or electrical wires. Mechanical rails are common for ease and cost-effectiveness, but VNA systems demand high floor accuracy.

DriveInPalletImage

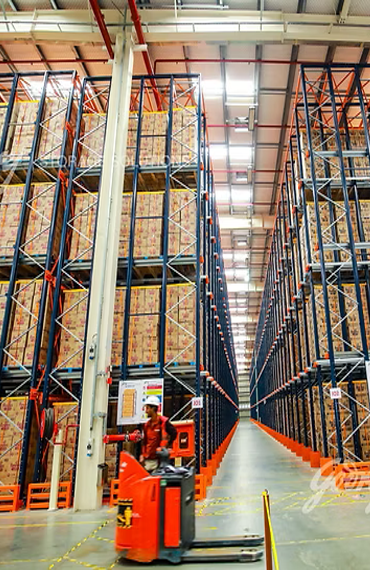

Drive-In Pallet

Racking

Designed to manage a limited range of SKUs stored in batches, in deep bays. As the name suggests, MHE-like reach trucks drive inside the storage bays to access the pallets.

mobilepalletImage

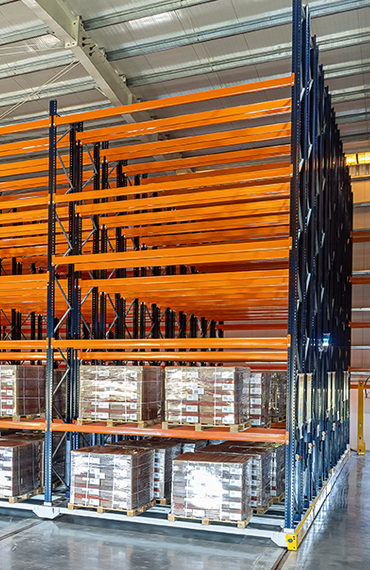

Mobile Pallet

Racking

Dynamic racking achieved by mounting Selective Pallet Racking (SPR) on wheels, powered to move on embedded rails. It doubles cubic space utilisation compared to SPR.​

ShuttlePalletRackingImage

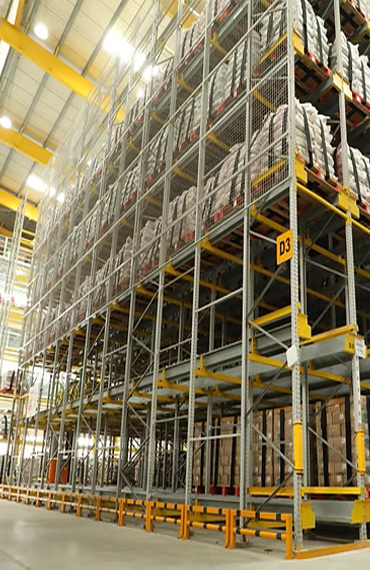

Shuttle Pallet

Racking

Dense racking system where pallets are handled by battery-powered radio shuttles within deep storage bays, eliminating the need for MHEs.​​

PalletFlowRackingImage

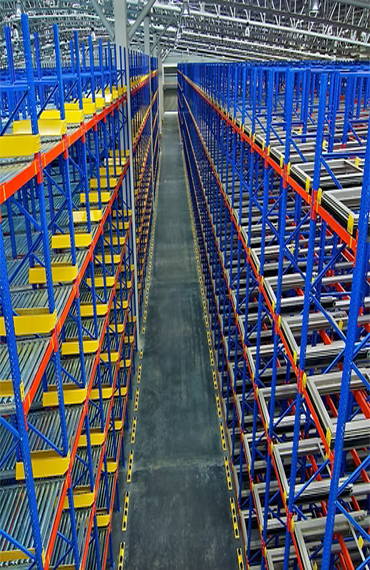

Pallet Flow

Racking

Pallets move from one end to another using gravity on metal rollers, ensuring a FIFO (First In, First Out) flow. This racking stores pallets on multiple levels, high and deep, with each level dedicated to one SKU. It's ideal for batch production, homogeneous products, and items with critical expiry dates. Loading occurs at one end and unloading at the other.​​

pushBackRackingImage

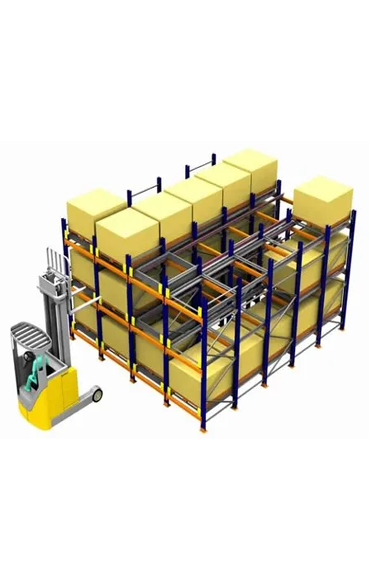

Push Back

Racking

A system that maximises storage by pushing back the first pallet, with the rest loaded using a mechanical push. Pallets are gravity-fed for unloading on carts with rollers. Both loading and unloading happen from the same side, operating on a LIFO (Last In, First Out) system. Pallets are stored on multiple levels, high and deep, with each level dedicated to one SKU.​​

CantileverRackingImage

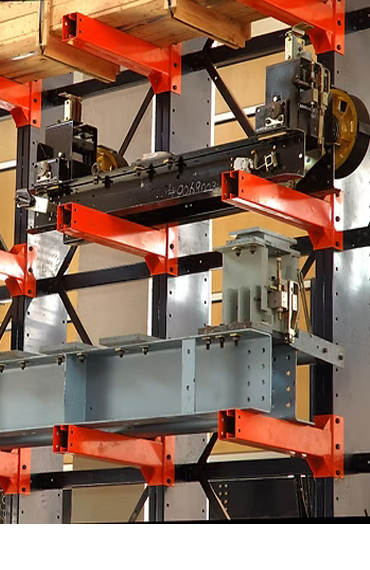

Cantilever

Racking

Ideal storage system for items that are long or of varying lengths, such as metal beams, pipes, molding, wooden crates etc. Both light or heavy-duty racking are available, depending on the height and weight of the merchandise.​​
